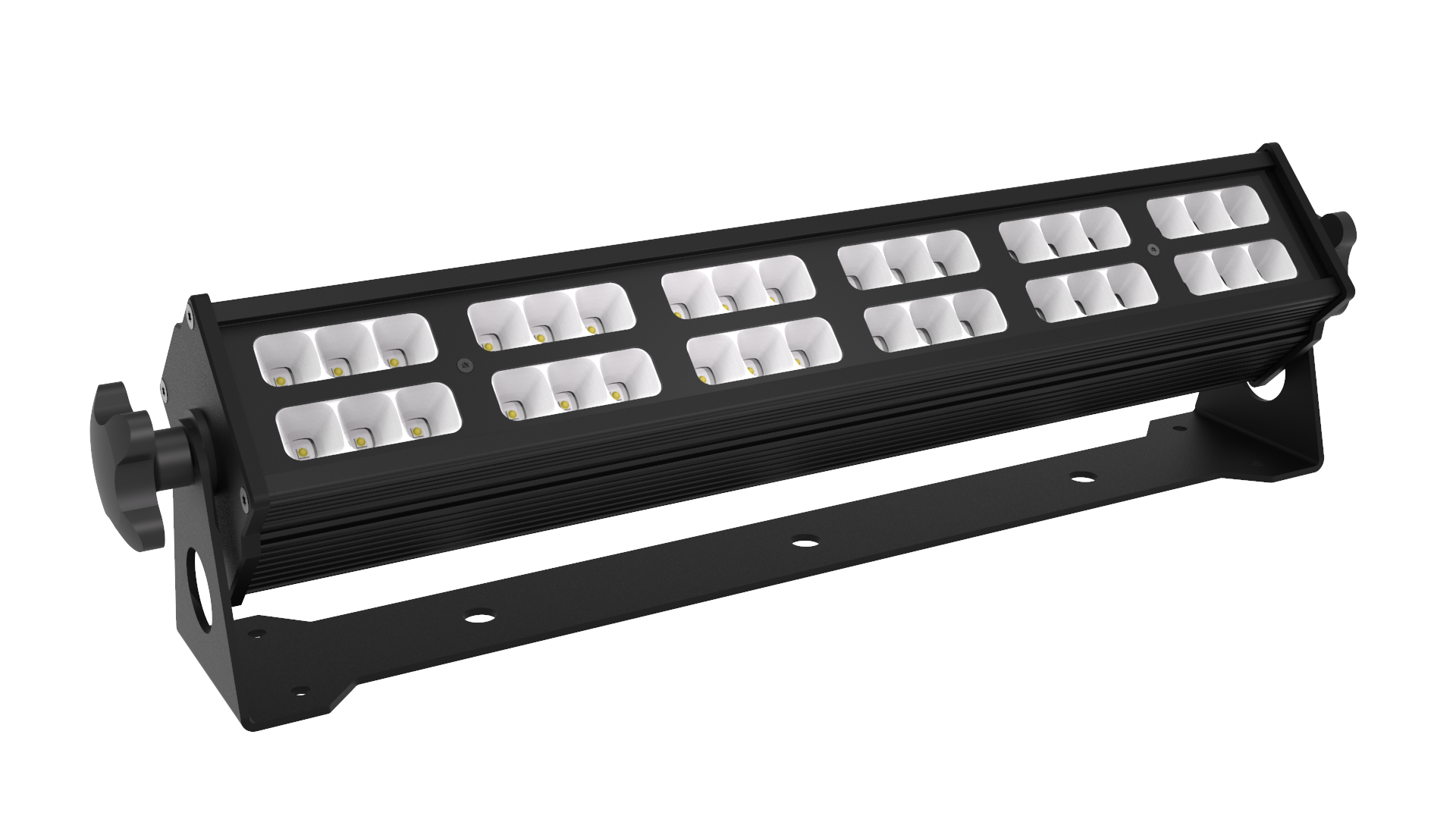

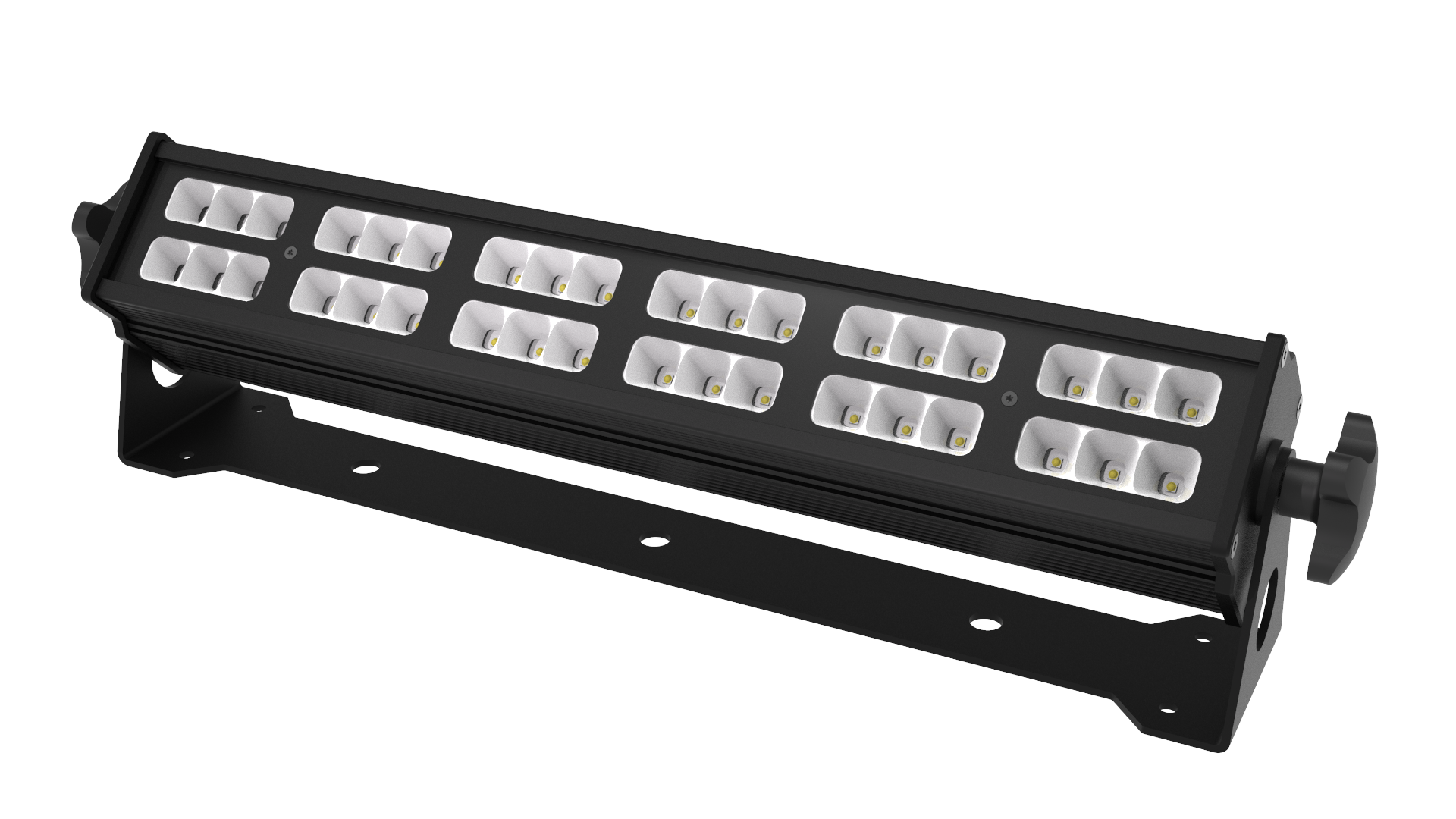

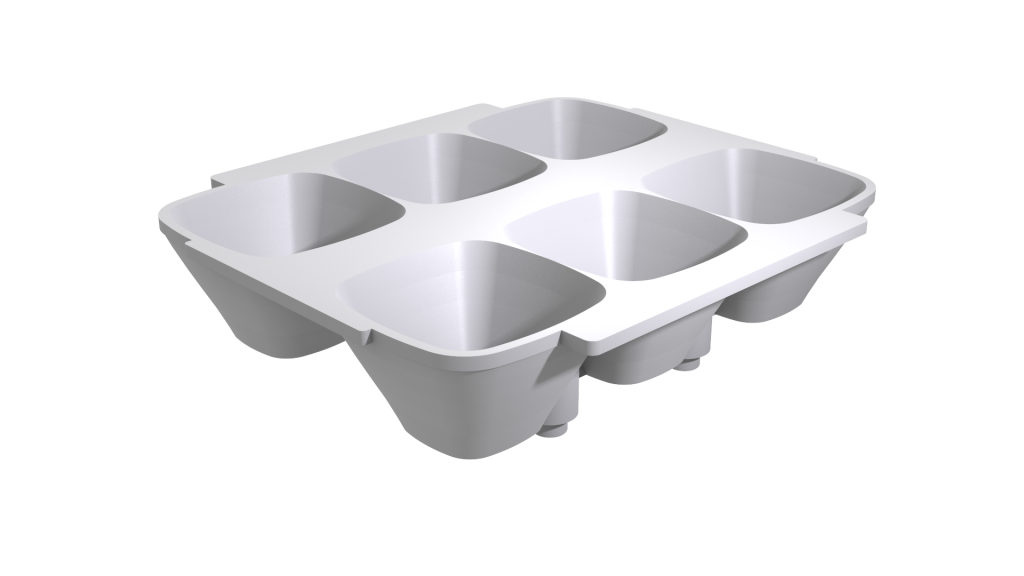

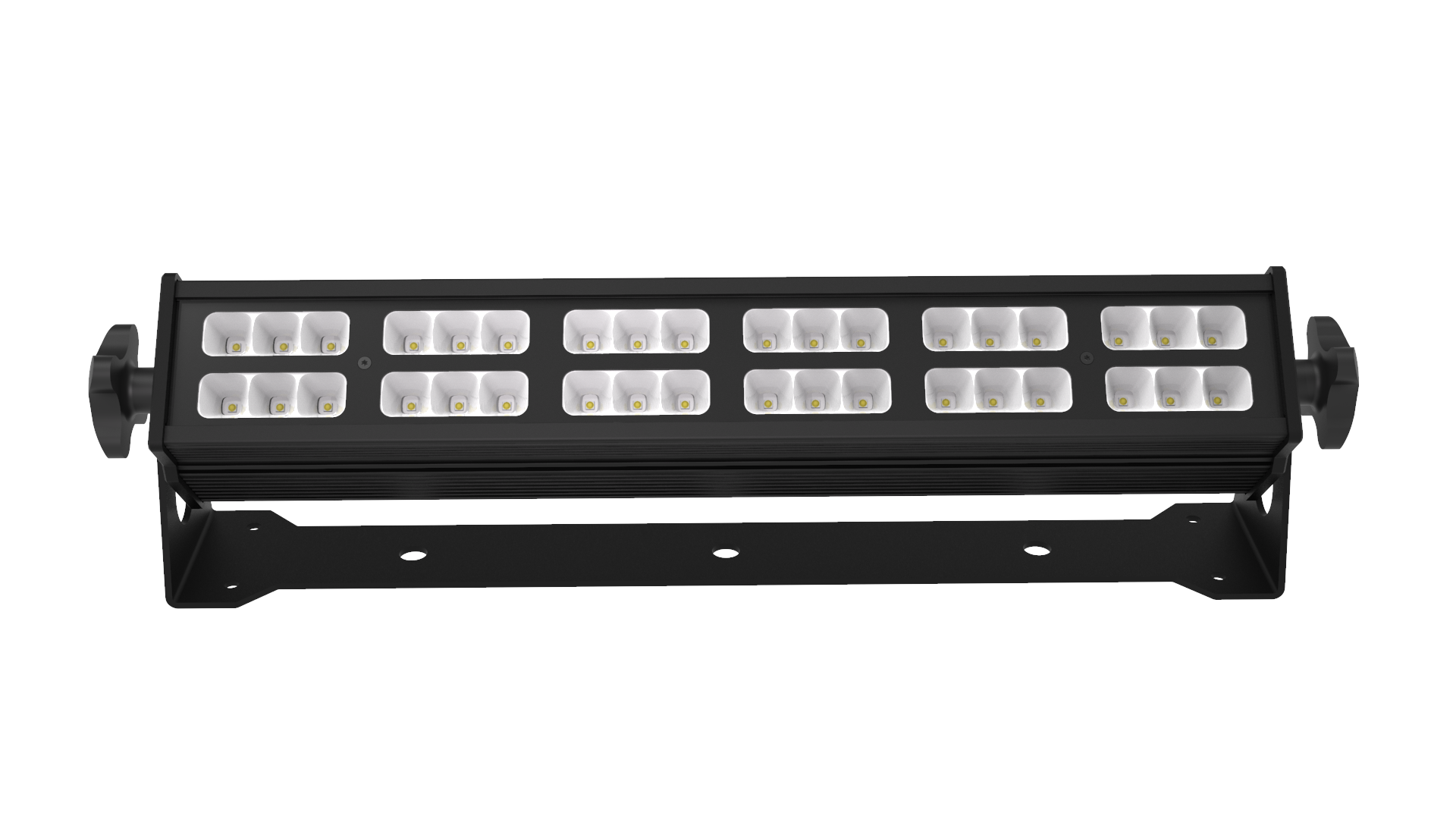

Stage LED BAR B3604 adopts the super wash reflector cup.
- Smooth and fine color mixing.

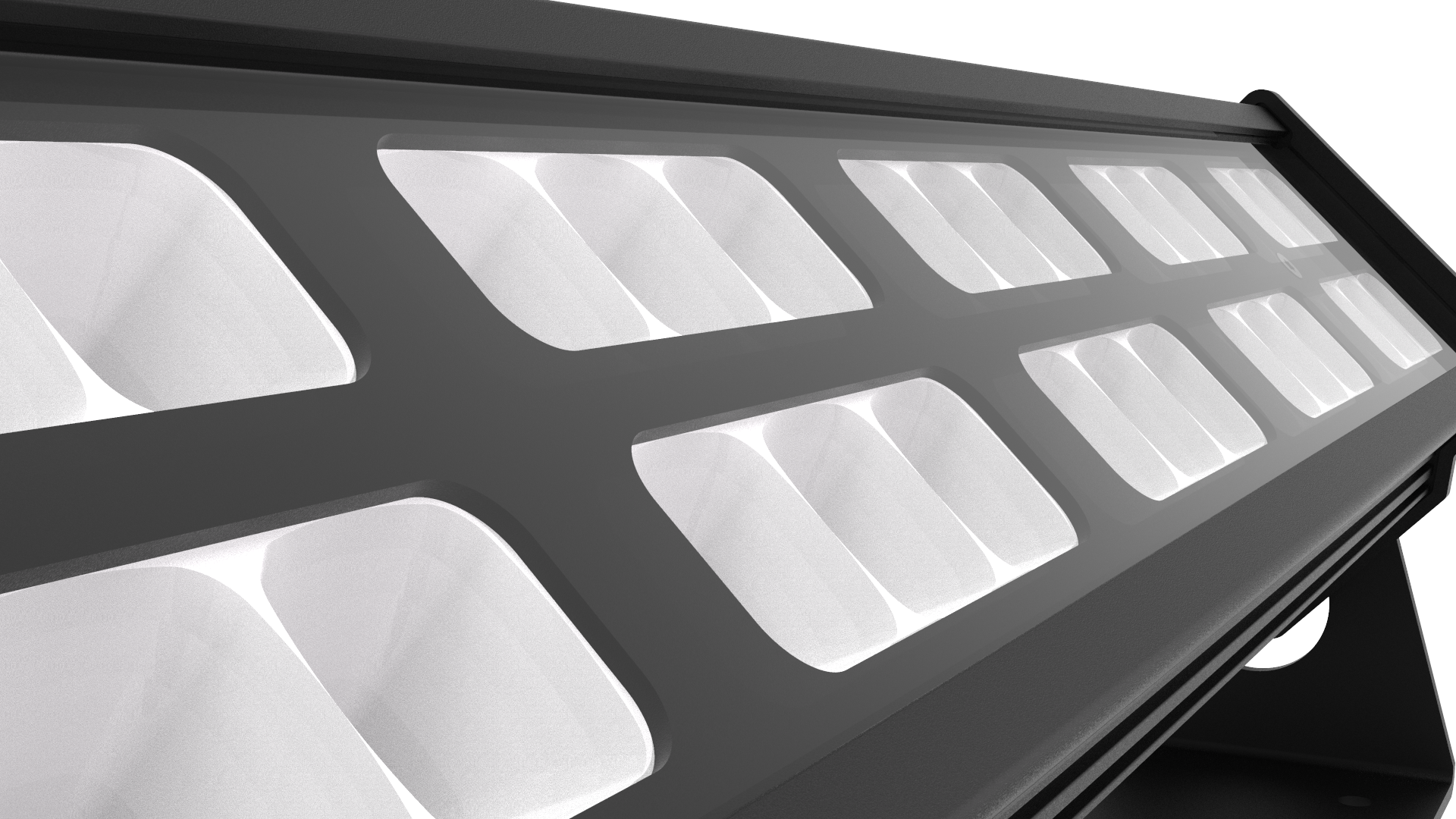

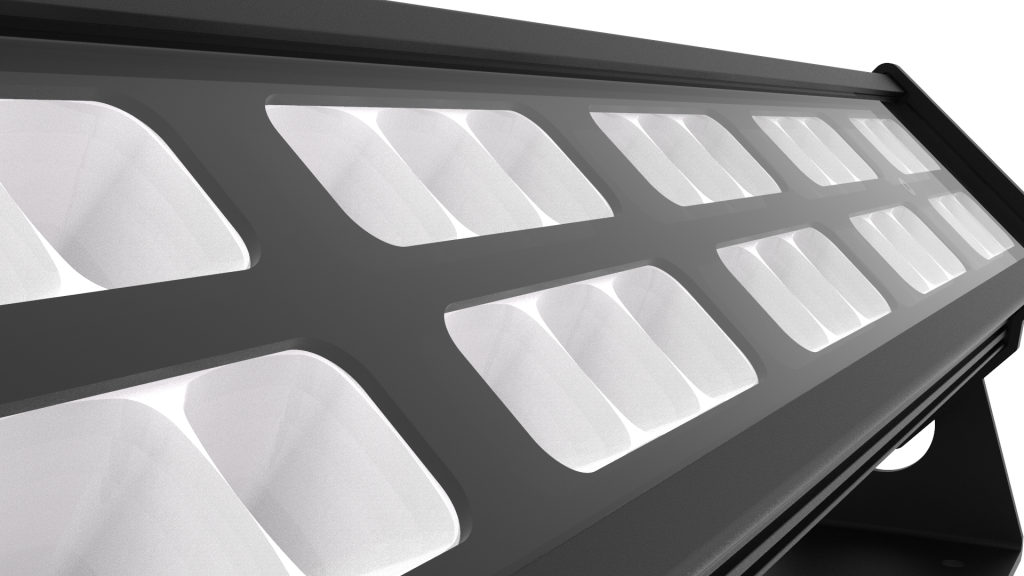

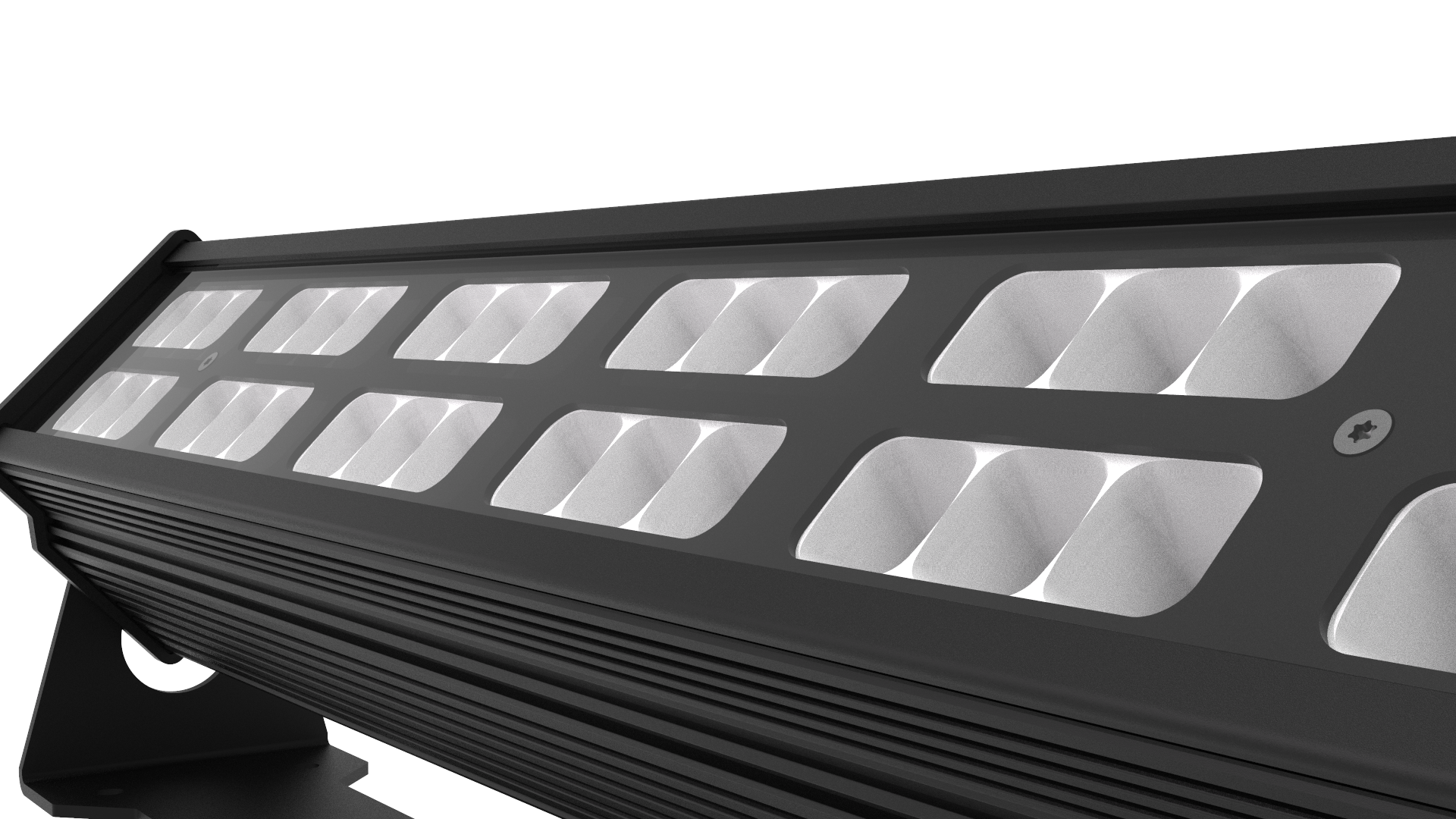

- 6pcs LEDs high density.
- Average beam angle is about 60 degrees.
DMX RDM Protocol is available!
- Controlling is becoming more simple and covenient VIA the DMX RDM protocol.
- Change the DMX address freely via RDM.
- Change the DMX channel mode freely via RDM.
- Change the device lable freely via RDM.

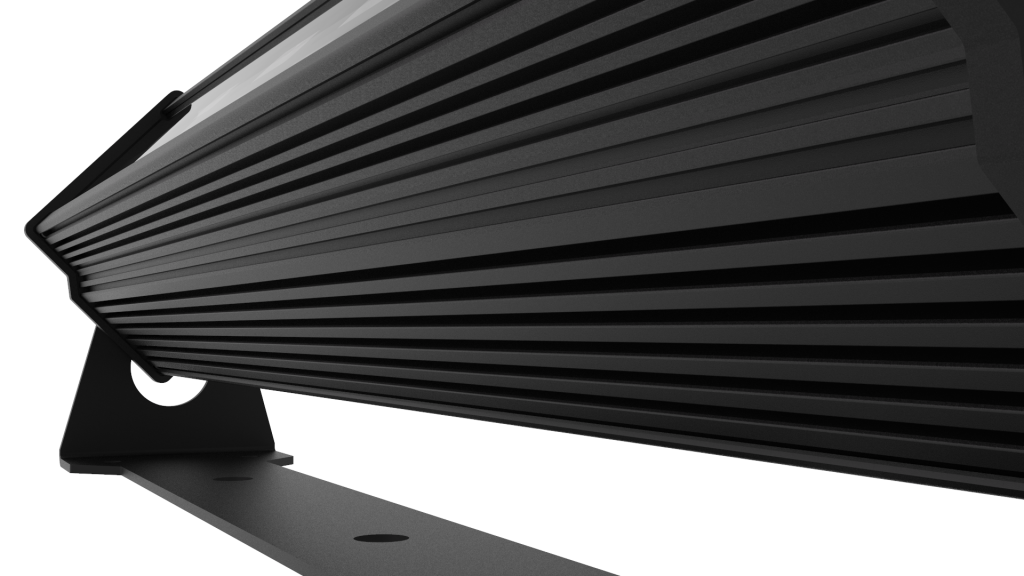

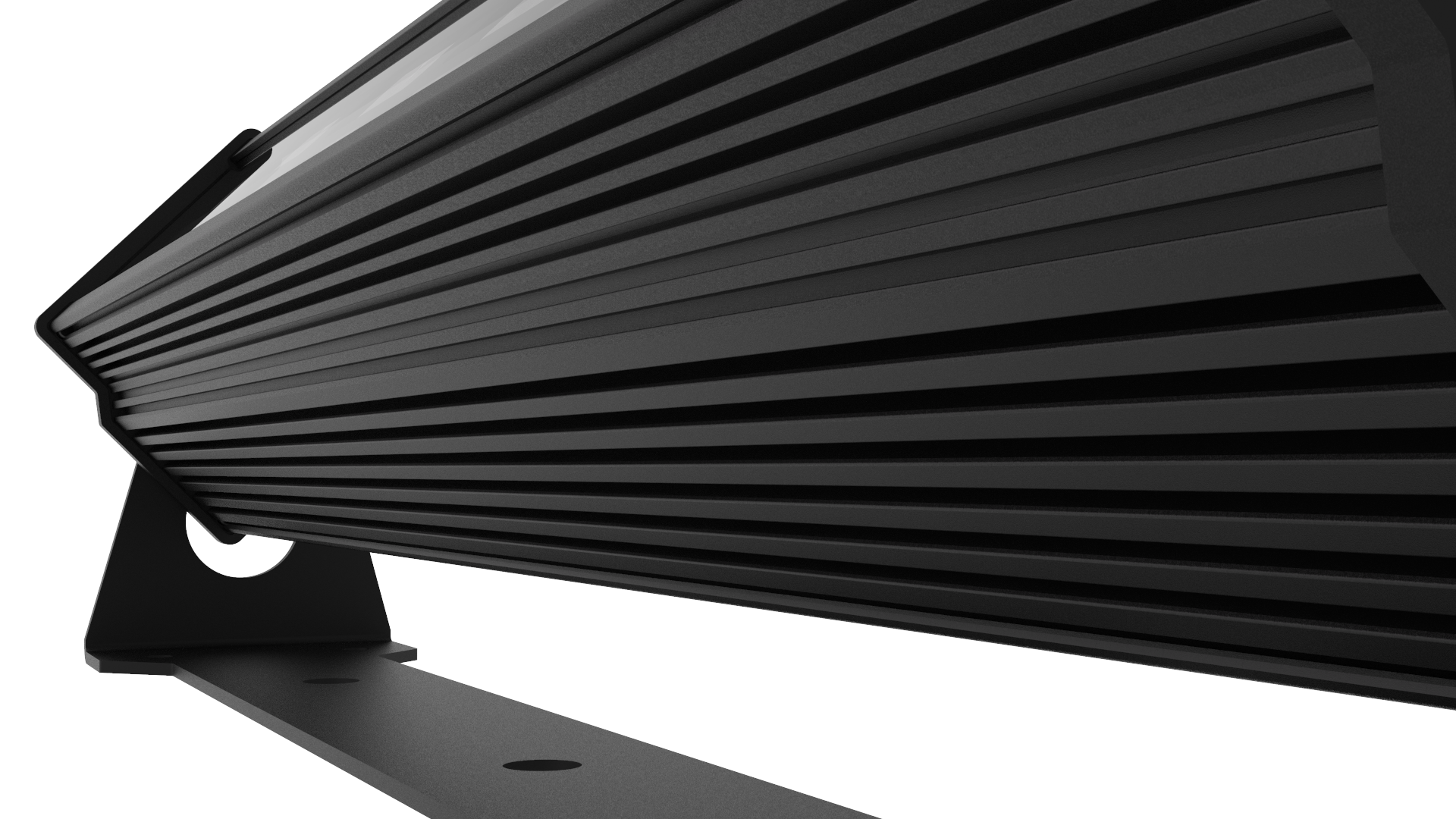

Aluminum thermal radiation module body
LED BAR B3604 adopt aluminum thermal radiation module body, more thermal convection area than any ever version. This kind of mechanical design can get the temperature down actively.
Front panel adopt high transmittance PMMA material. This PMMA material transmittance up to 93%, lower brightness lose.

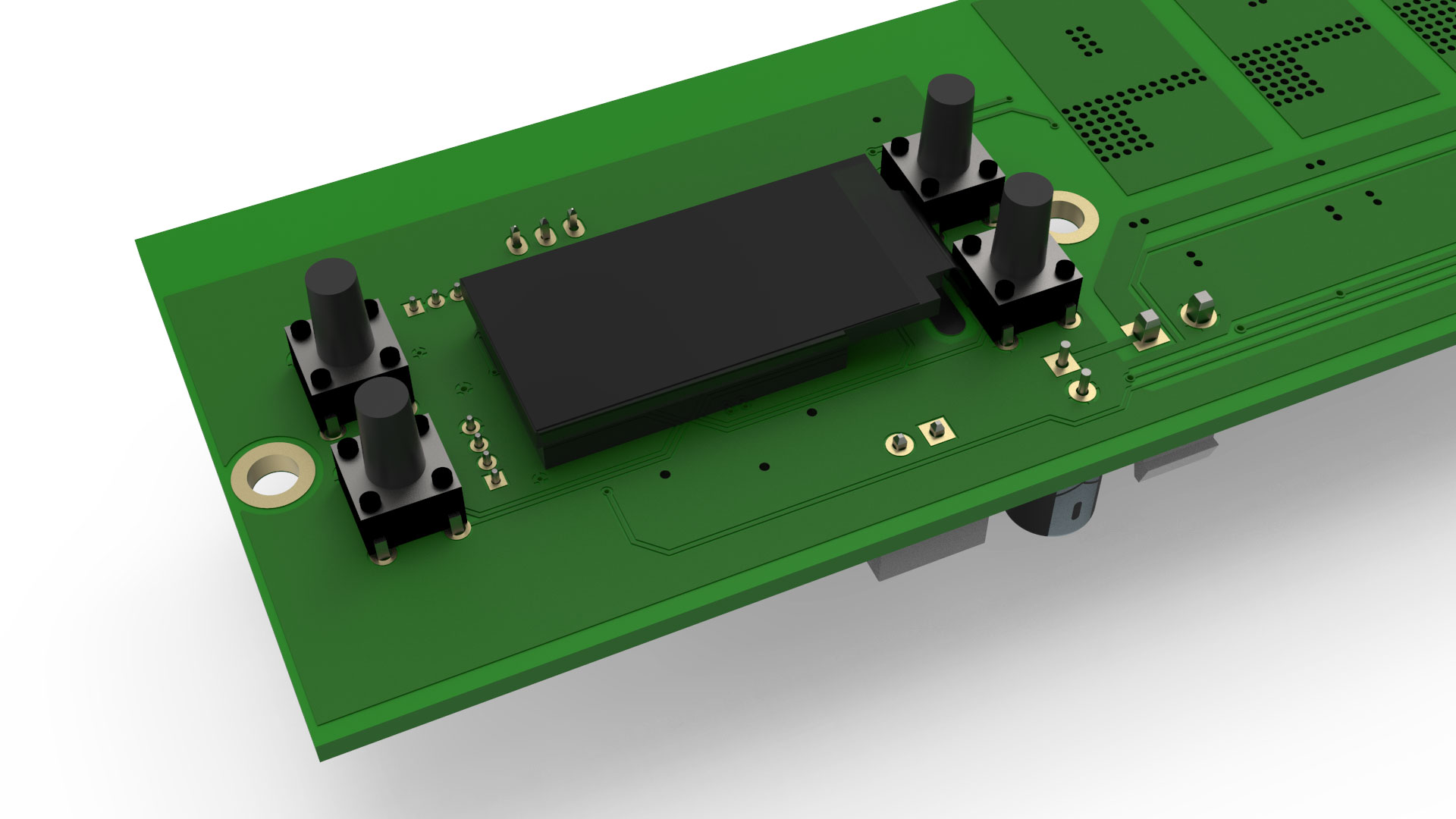

0.96 inch micro IPS HD Screen, up to 160×80 RGB pixels. allow to display more color and more detail. Allow the end user very easy to reading and choose the menu on the screen directly.
Do not need to searching the symbol on the user manual all the time.

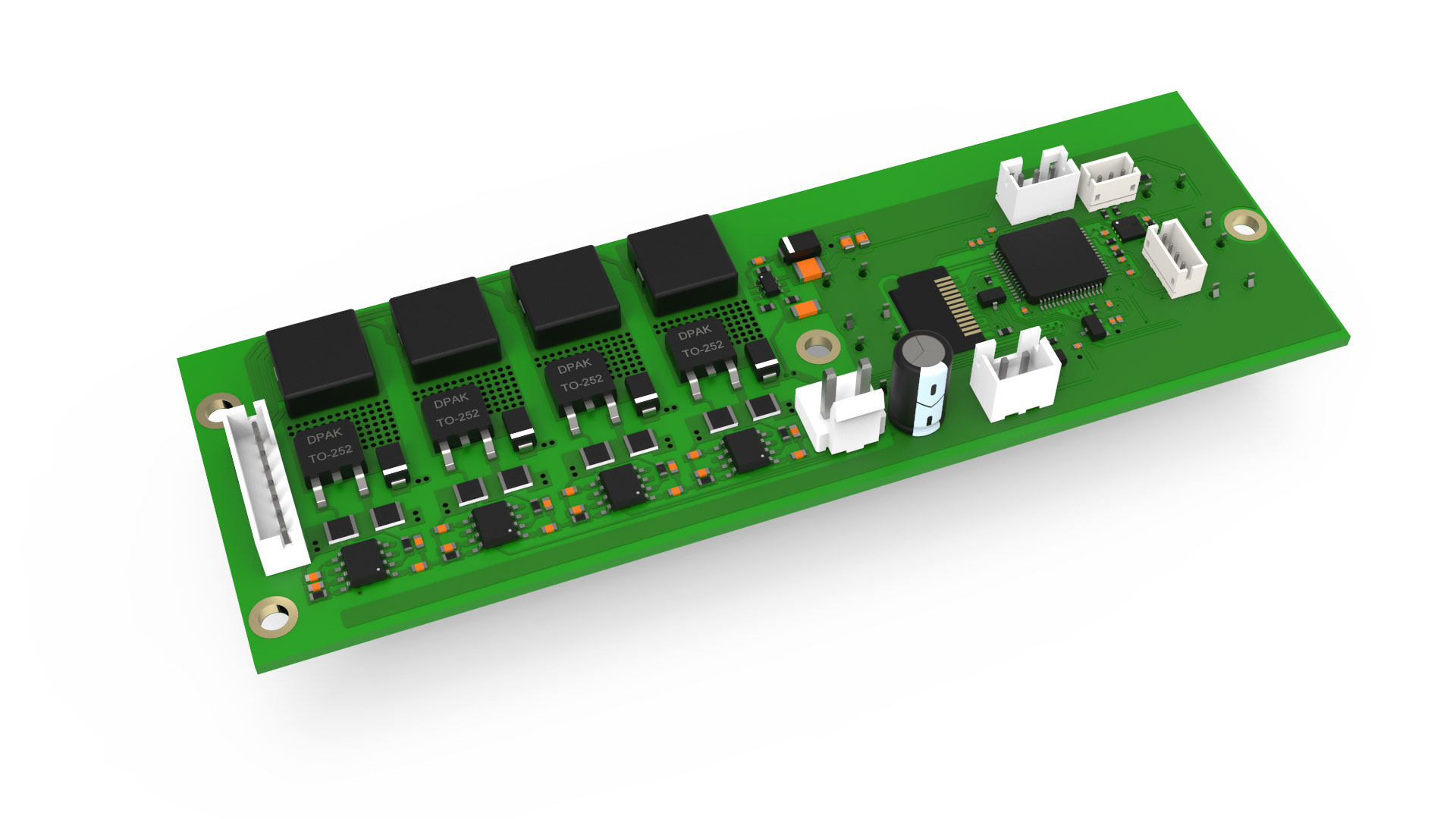

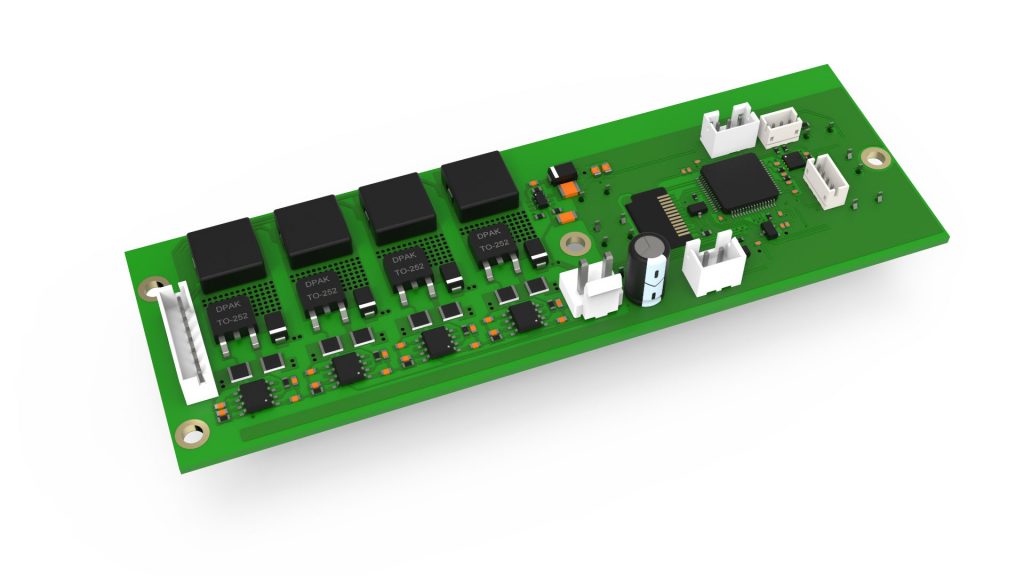

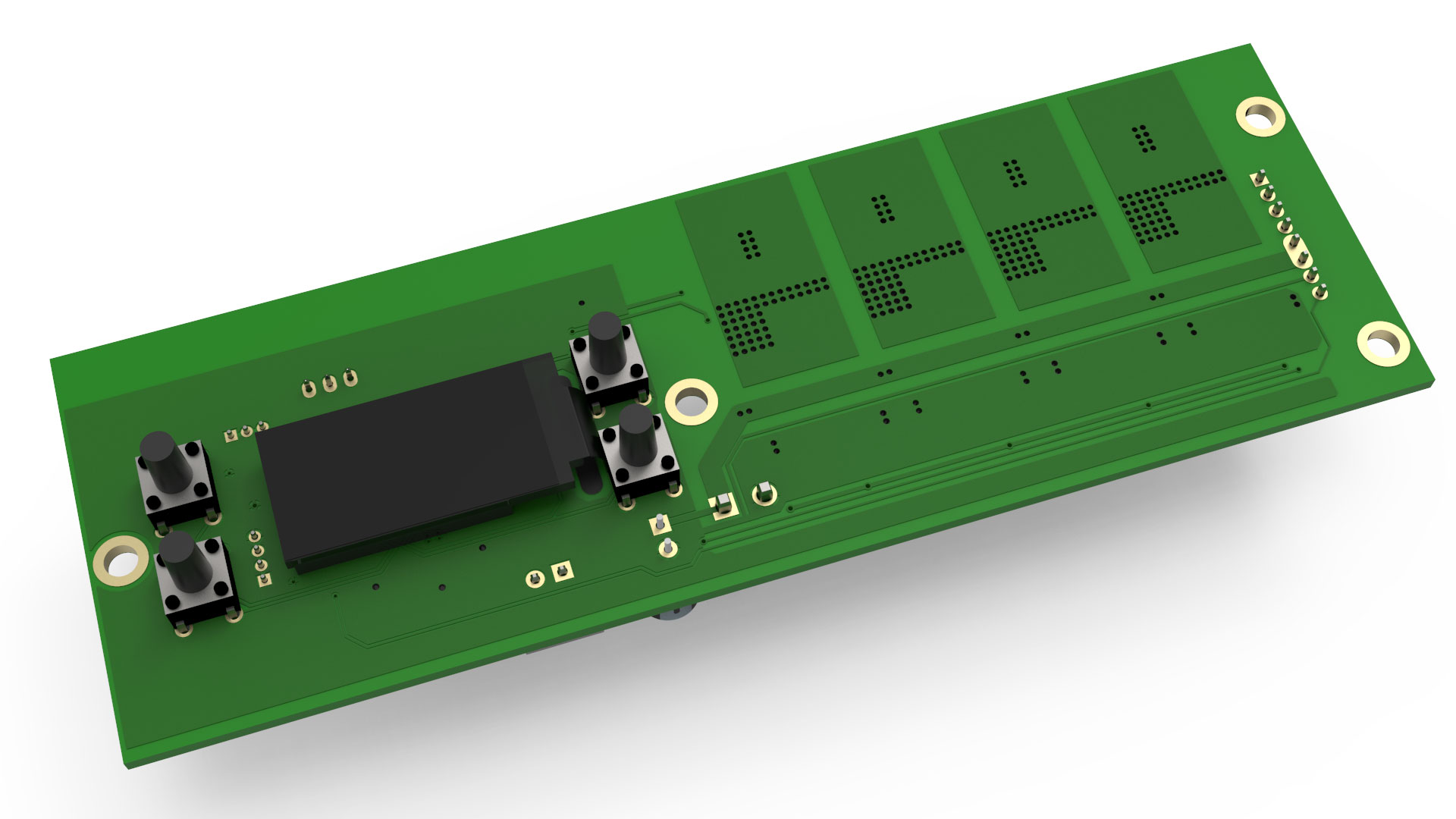

ALL IN ONE driver PCB design.
This PCB layout by GT. He also our best programmer for the DMX-512 LED lighting firmware program.
- HV9910 high current LED driver
- 32-bit ARM STM32F0 MCU
- Refresh frequency from 1KHz to 14.5KHz choose by DMX-512
- LED & Driver temperature control
- Cooling Fan can be contol by DMX-512 channel
- DMX-512 / RDM
It has 4x high current LED driver output channel :
- Total current up to 7.5 Ampere.
- Larger cooling plate let the components more stable.
- Thermal separation area between the MCU / Signal / Driver .
- On board temperature moniting technology.
-

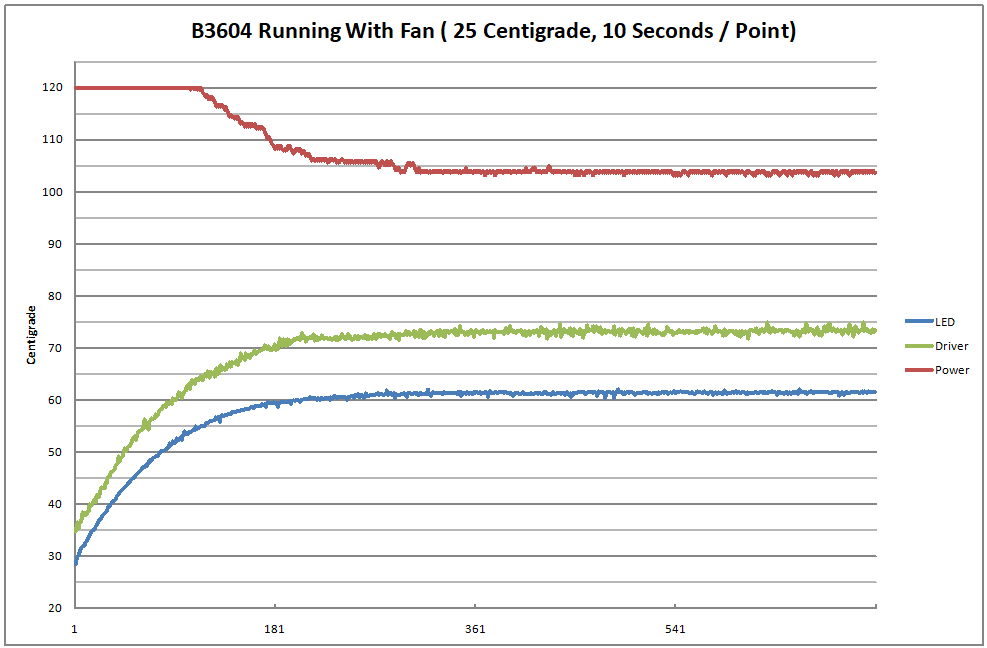

- Test 2 Hours With Fan
-
- Test 2 Hours Without Fan
-

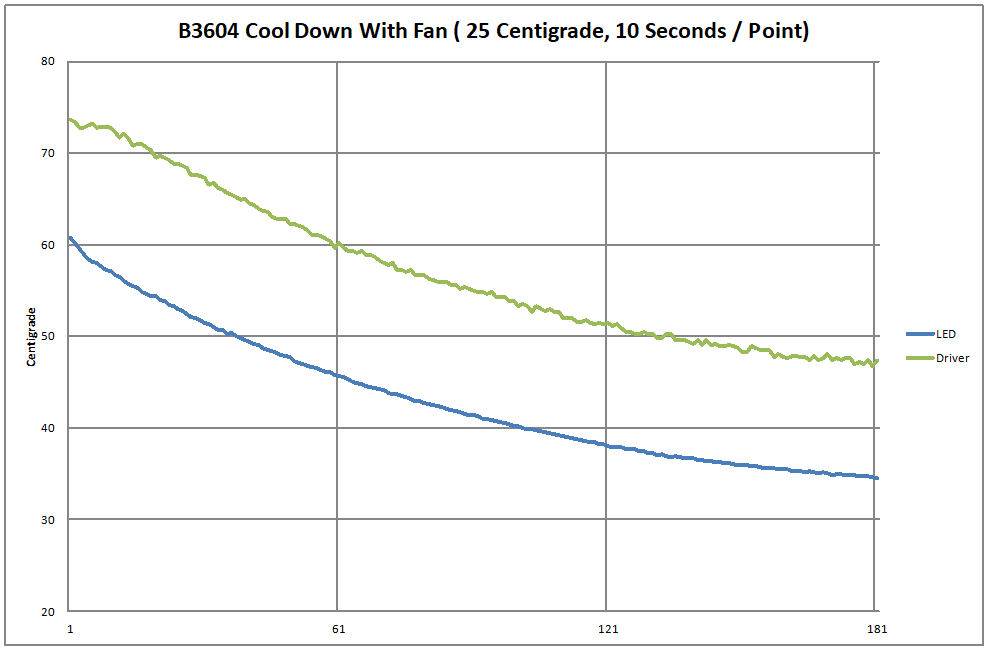

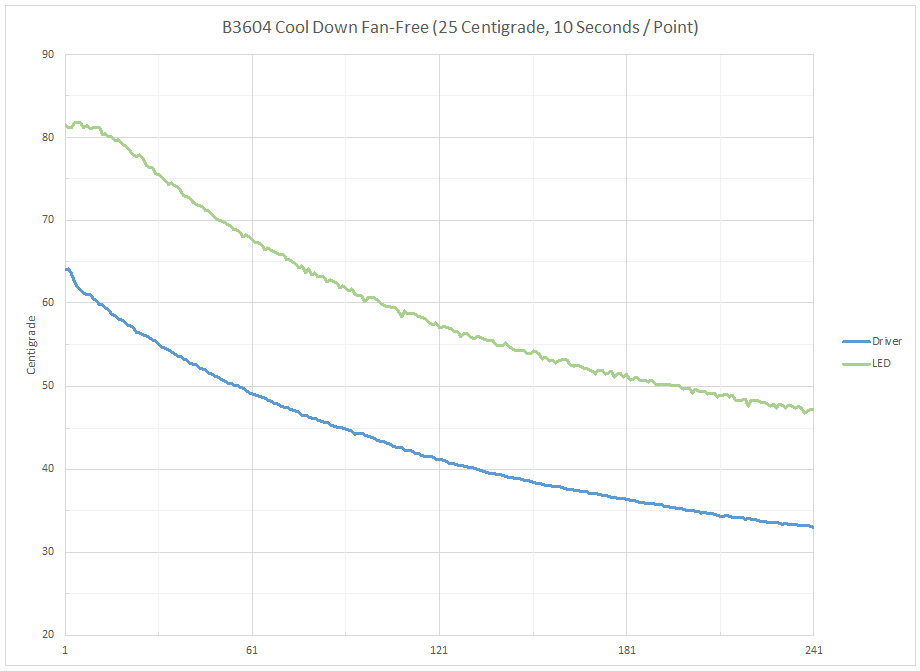

- Cool down record With Fan
-
- Cool down record Without Fan
